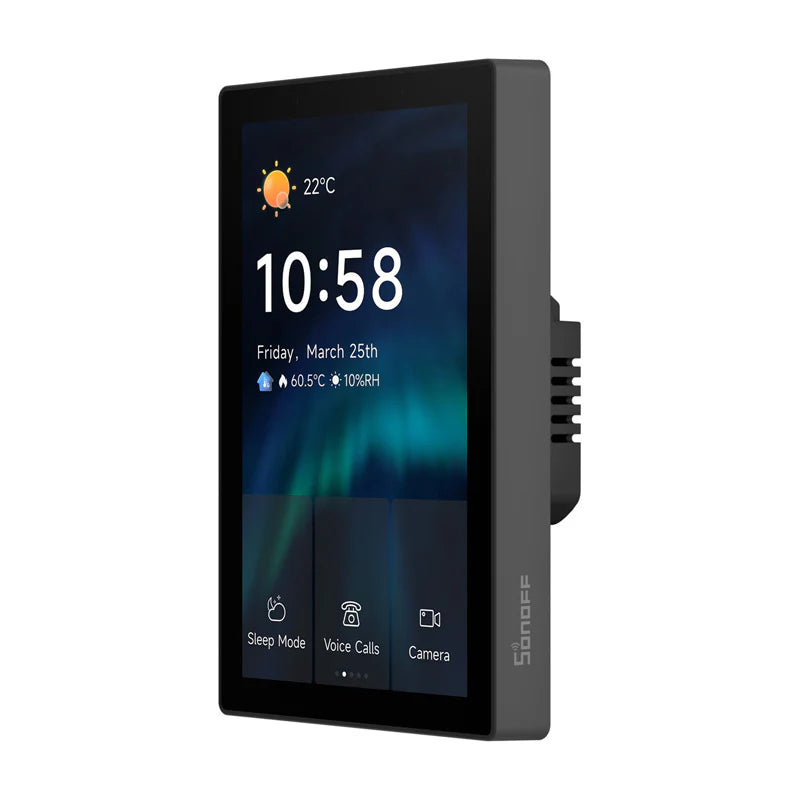

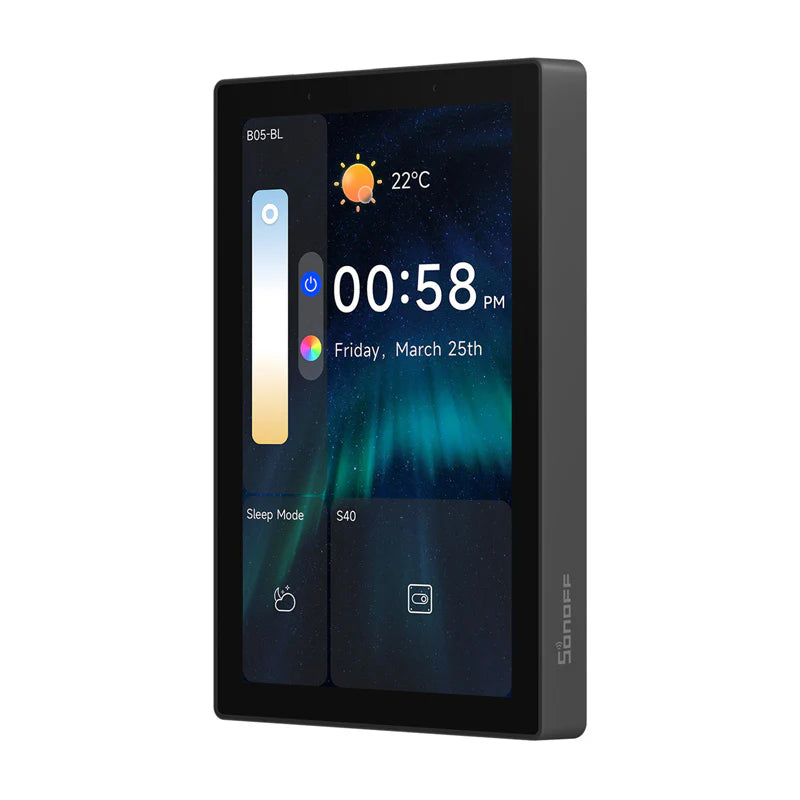

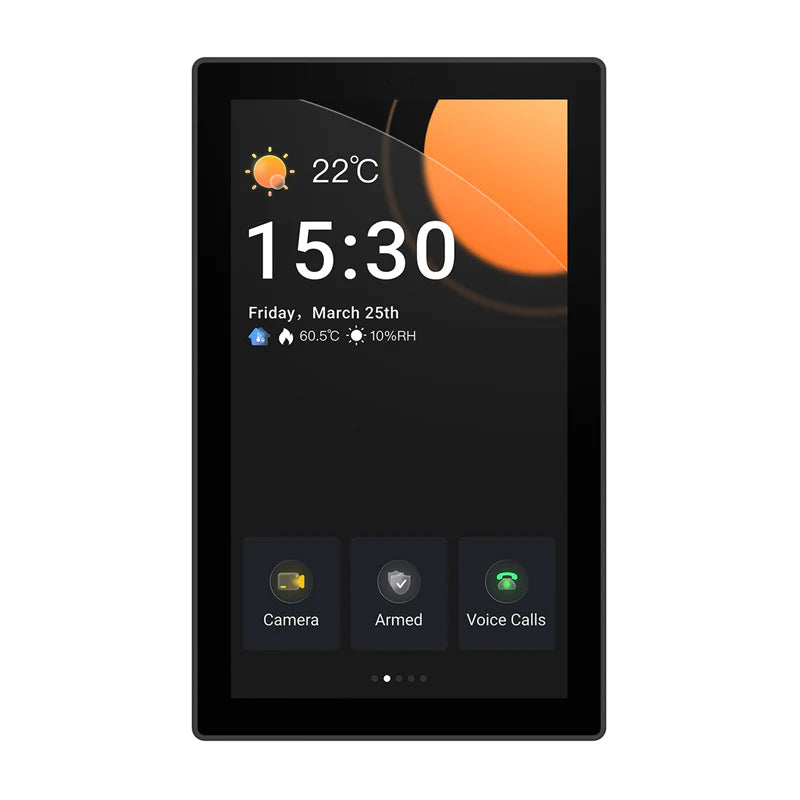

SONOFF NSPanel Pro 120 Control Panel (black)

The SONOFF NSPanel Pro 120 is a central control panel for your smart home. It combines a capacitive touch display with a built-in Zigbee 3.0 hub and unifies your devices into a single interface – lighting, temperature, energy, security status, camera streams, and more. You can also use the panel as a local dashboard via Home Assistant.

Highlights

• 4.7" touch display with clear resolution (750 × 1334 px)
• Integrated Zigbee 3.0 hub for direct pairing and control of Zigbee devices
• Wi-Fi (2.4 GHz) for cloud and local control
• Customizable dashboards and scenes for lighting, climate, security, and energy
• Camera feed directly on the panel – live view of compatible cameras
• Home security and alarm modes with status indicators and notifications
• Energy and consumption monitoring in combination with suitable smart plugs
• Voice control via Alexa and Google Assistant
• Home Assistant compatible: You can access your Home Assistant frontend in the LAN as a web shortcut to visualize and operate devices from Zigbee, Wi-Fi, and other technologies together
• 120 mm installation format for wider wall boxes (120 type)

Everyday functions

• Switch scenes (e.g., "Evening", "Away", "Alarm armed")
• Control heating and thermostats
• Dim or switch lighting groups
• Monitor door/window sensors, motion detectors, temperature sensors, etc.
• Display live camera feeds
• Control devices directly via widgets without needing to open a smartphone app

Technical specifications

• Display: 4.7" capacitive touchscreen
• Resolution: 750 × 1334 pixels
• CPU: Quad-Core ARM Cortex-A35
• GPU: Mali G31
• Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz, Zigbee 3.0
• Power supply: 100–240 V AC, 50/60 Hz
• Power consumption: max. 5 W
• Operating temperature: 0 °C to 40 °C
• Humidity: 5% – 90% RH, non-condensing
• Dimensions (120 Type): 122.5 × 74.5 × 39.5 mm
• Front material: tempered glass, housing PC V0 + CRS
• Certifications: CE / FCC / ISED / RoHS

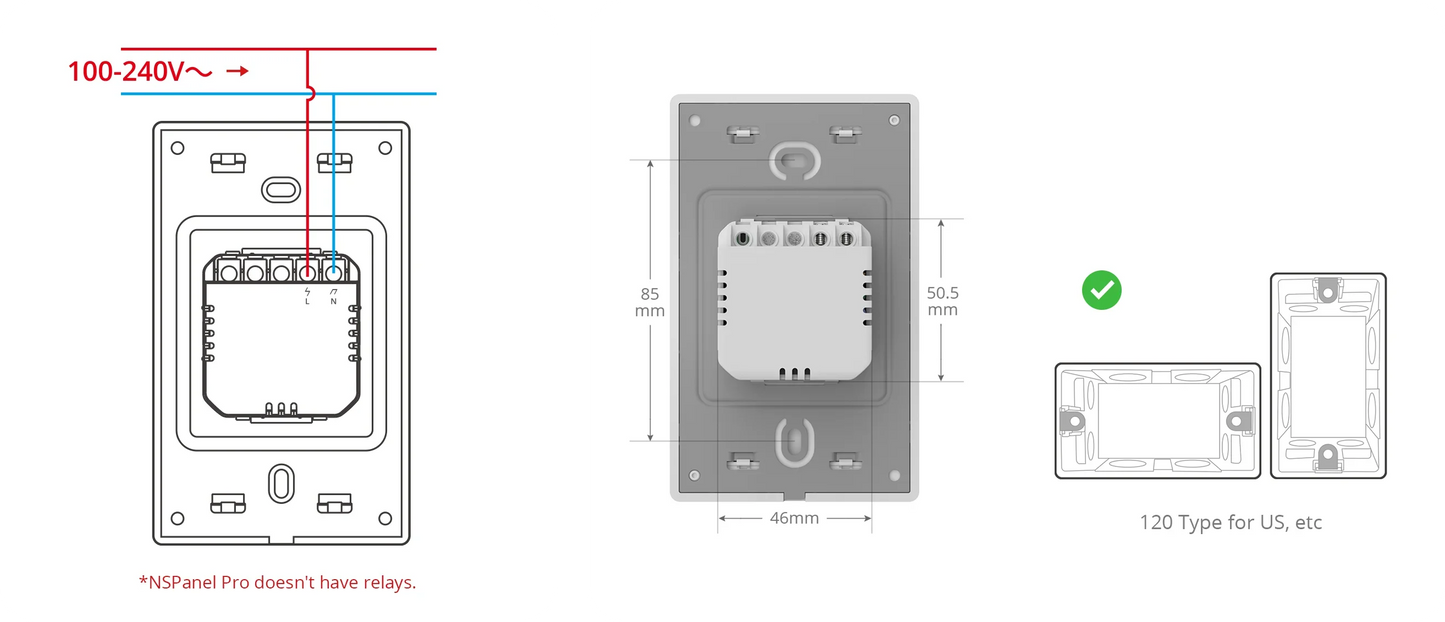

Installation & Compatibility

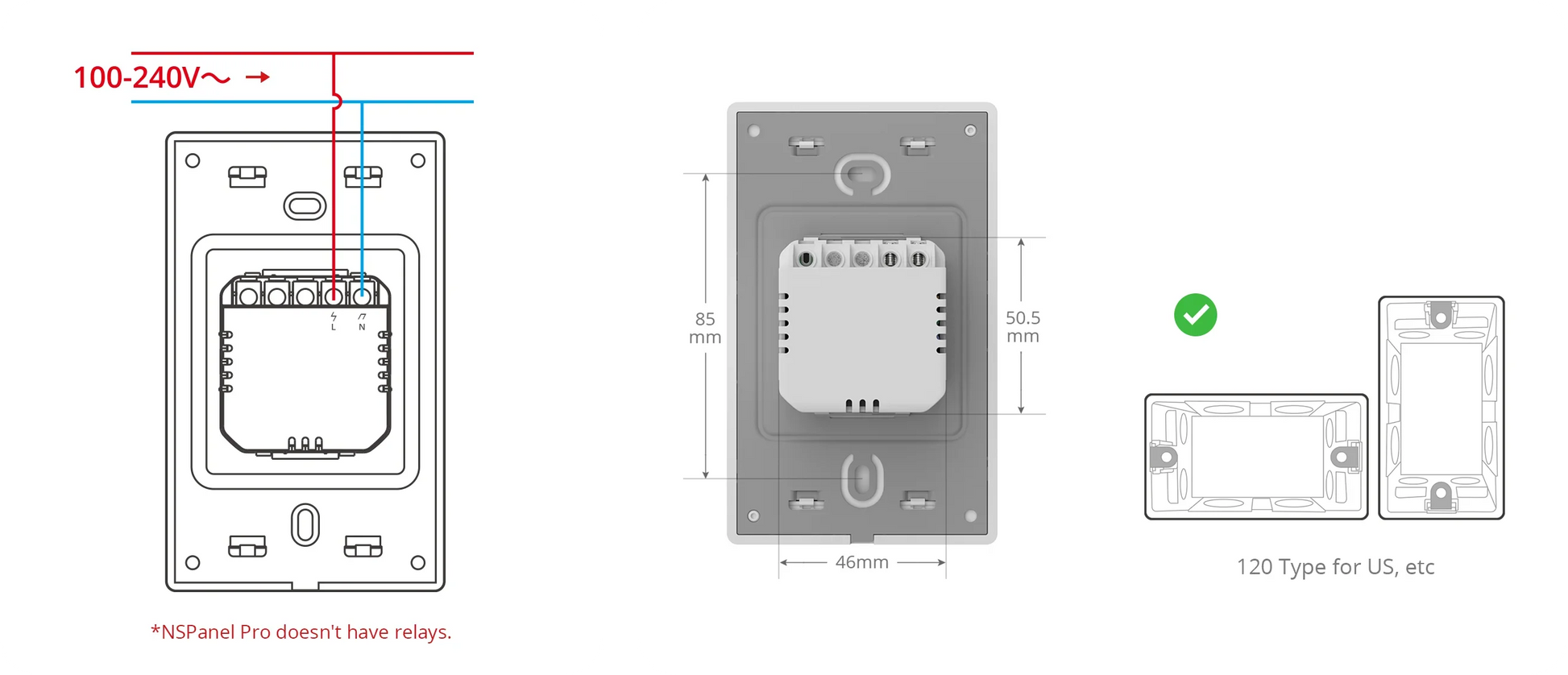

The NSPanel Pro 120 version is designed for rectangular 120 mm wall boxes. The panel is powered directly by 100–240 V AC and therefore does not replace a standard mechanical light switch, but serves as a standalone control center. Via Home Assistant, you can collectively display and automate your Zigbee devices (using the integrated Zigbee 3.0 gateway), Wi-Fi devices, and devices using other wireless standards.

Scope of delivery

• 1 × SONOFF NSPanel Pro 120
• 1 × Frame / wall mount
• Screw set for installation
• Quick start guide
