SONOFF

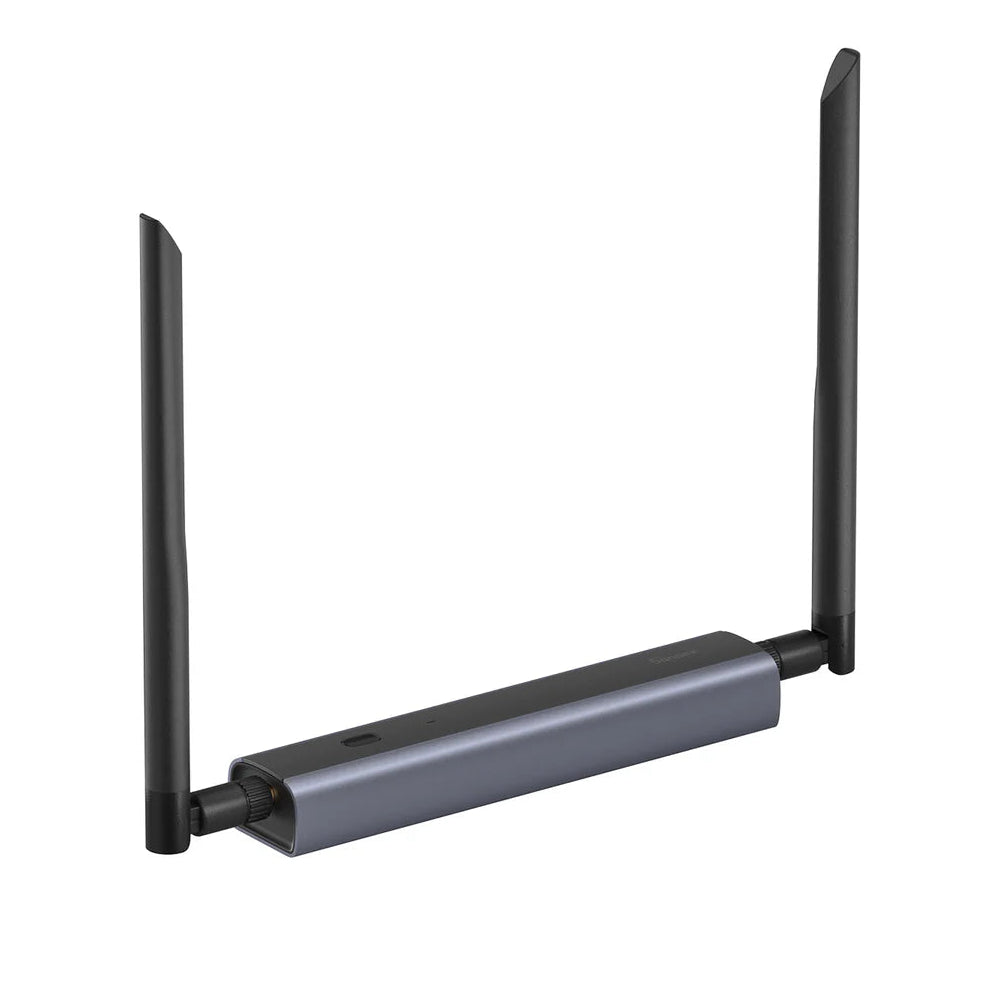

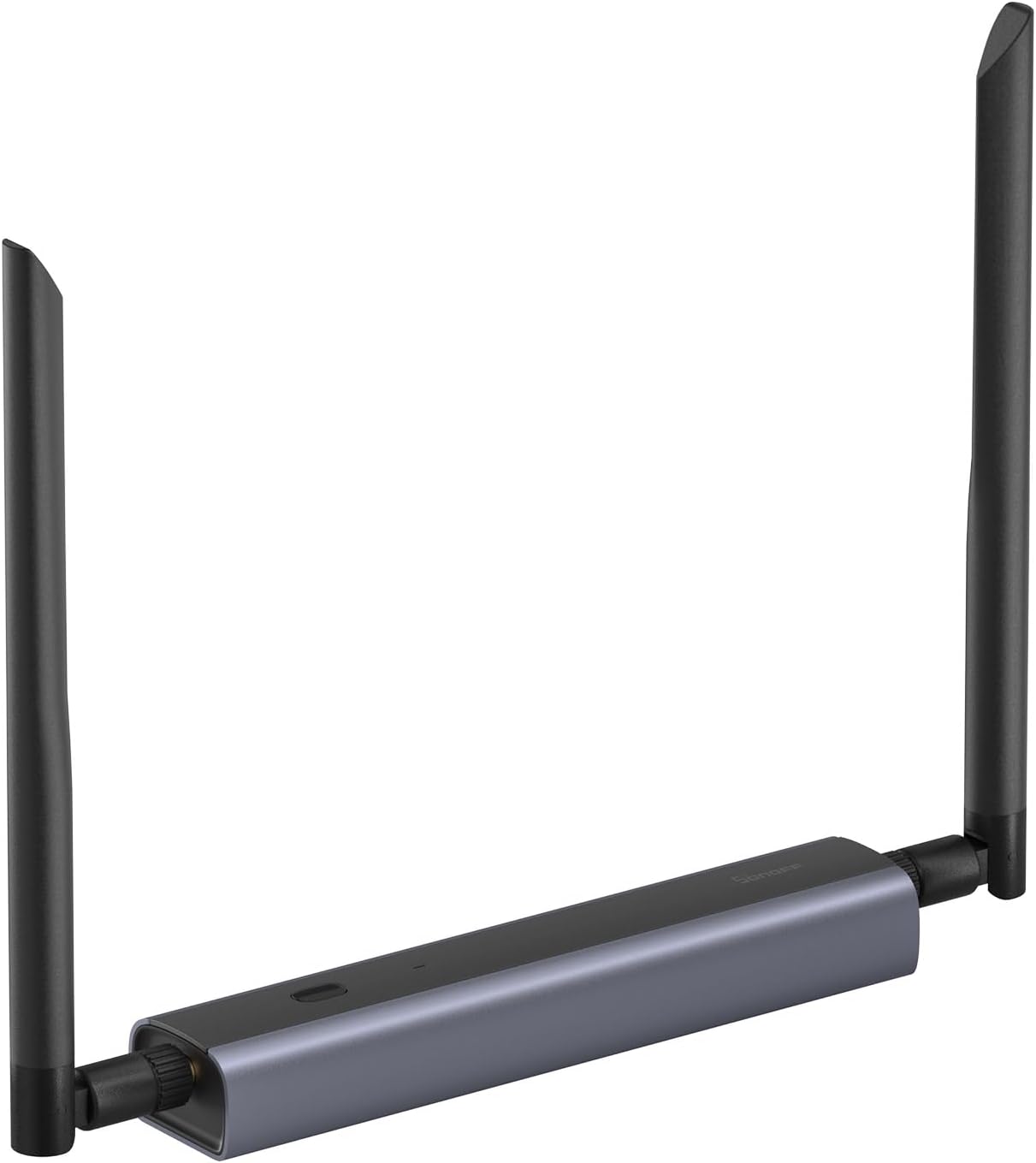

Sonoff Dongle Max – Zigbee & Thread Gateway with PoE, Wi-Fi & USB

Name: Sonoff Dongle Max – Zigbee & Thread Gateway with PoE, Wi-Fi & USB
Brand: SONOFF
SKU: SD-SO-Dongle-M
Price: 35.49 EUR
Availability: InStock

35,49 €

Sale Sold out

Taxes included. Shipping calculated at checkout.

auf Lager: 185

📄 Bedienungsanleitung als PDF herunterladen

Works with: ZHA, Zigbee2MQTT, WiFi, LAN, Matter, and Thread

The Sonoff Dongle Max is a powerful gateway for your smart home. Thanks to Zigbee 3.0 and Thread (Matter-Ready), it reliably connects devices from various manufacturers to Home Assistant – via Ethernet (PoE), Wi-Fi, or USB. The combination of ESP32 and Silicon Labs EFR32MG24 ensures long range, fast response times, and stable networks, even in larger installations.

Highlights

3 connection methods: Ethernet (with Power-over-Ethernet), Wi-Fi, or USB – place the gateway exactly where reception is best.
Zigbee & Thread: Modern 802.15.4 radio base for seamless integration of Zigbee sensors and Thread/Matter devices.
High stability: Dedicated network operation via LAN/PoE reduces interference, making it ideal for dense radio environments.
Dual antenna: External antennas for strong range and robust mesh coverage throughout the house.
Local control: Works with Home Assistant (e.g., ZHA or Zigbee2MQTT) without the need for a cloud.
Flexible firmware: Can be used as a Zigbee coordinator, OpenThread Border Router, or multi-protocol setup, depending on your needs.

Why Dongle M?

PoE power & network: One cable for power & data – keeping your rack, utility room, or ceiling installation tidy.
Wi-Fi flexibility: Ideal when no LAN is available but a central mounting location is required.
USB operation: Connect directly to a mini-PC, NAS, or server – perfect for compact setups.
Scalable: Large networks with many end devices, thanks to a strong radio base and clean topology.

Compatibility & Platforms

Home Assistant – recommended (ZHA or Zigbee2MQTT; Thread via OpenThread Border Router).
Works with common open-source stacks and MQTT-based home automation.
Note on interoperability: Devices of different technologies (e.g., Zigbee, Wi-Fi, Matter/Thread) can be automated together via Home Assistant.

Technical Specifications (Excerpt)

Radio	IEEE 802.15.4 (Zigbee 3.0 & Thread)
Chipset	ESP32 (network/management) + Silicon Labs EFR32MG24 (2.4 GHz radio)
Connectivity	RJ45 Ethernet (PoE), 2.4 GHz Wi-Fi, USB
Power supply	Power-over-Ethernet (PoE) or USB power
Antennas	External dual antennas for long range
Usage	Zigbee coordinator, OpenThread Border Router, multi-protocol setups
Smart home platforms	Home Assistant, Zigbee2MQTT, MQTT environments

Quick Start

Select placement: A central location with good 2.4 GHz coverage (far from sources of interference).
Connection: Connect via PoE over LAN, or integrate via Wi-Fi, or connect to the host via USB.
Home Assistant: Set up ZHA or Zigbee2MQTT; for Thread, activate/configure the OpenThread Border Router.
Pair devices: Put Zigbee end devices into pairing mode and add them; incorporate Thread/Matter devices according to manufacturer instructions.

Scope of Delivery

Sonoff Dongle M (gateway)
External antennas
Quick start guide

Note: Cables/accessories may vary by batch. Please refer to the product images for details.

Tips for best results

Build a mesh: Distribute mains-powered plugs/relays as routers to maximize range.
Channel selection: Choose a Zigbee/Thread channel as far away from your Wi-Fi channel as possible.
Location: Position as high and unobstructed as possible; avoid metal surfaces and thick walls.
