Shelly 1PM Mini Gen4 - 2-Pack

Contents: 2 x Shelly 1PM Mini Gen4

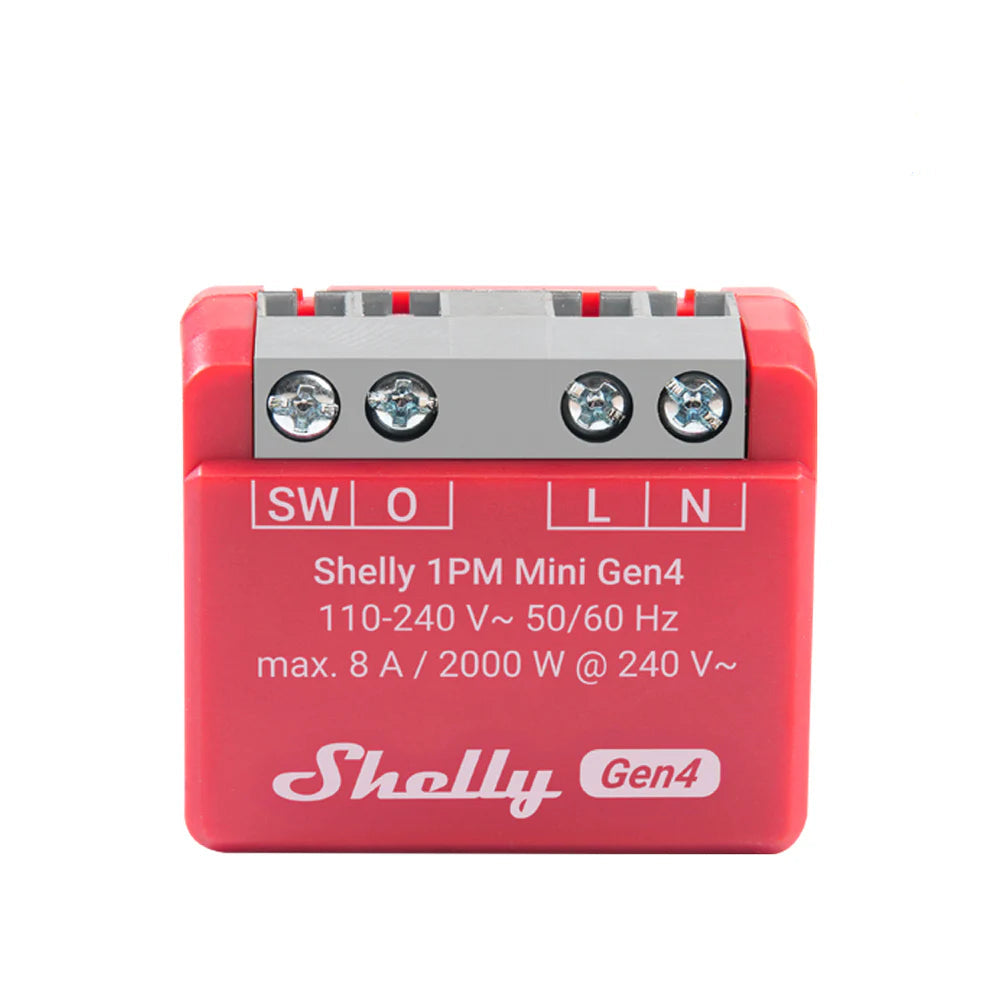

Shelly 1PM Mini Gen4 – Compact Wi-Fi switch with power metering
The Shelly 1PM Mini Gen4 is a space-saving smart home switch with integrated consumption monitoring. Measuring just 29 × 34 × 16 mm, it fits easily into flush-mounted boxes and is ideal for retrofitting light switches, wall outlets, or individual appliances. It switches loads up to 8 A (approx. 2000 W) and measures current, voltage, and energy consumption in real time. Thanks to Wi-Fi, Bluetooth, Zigbee, and Matter, integration into almost all common smart home systems is possible – completely locally, without the cloud, if desired.

Technical Data

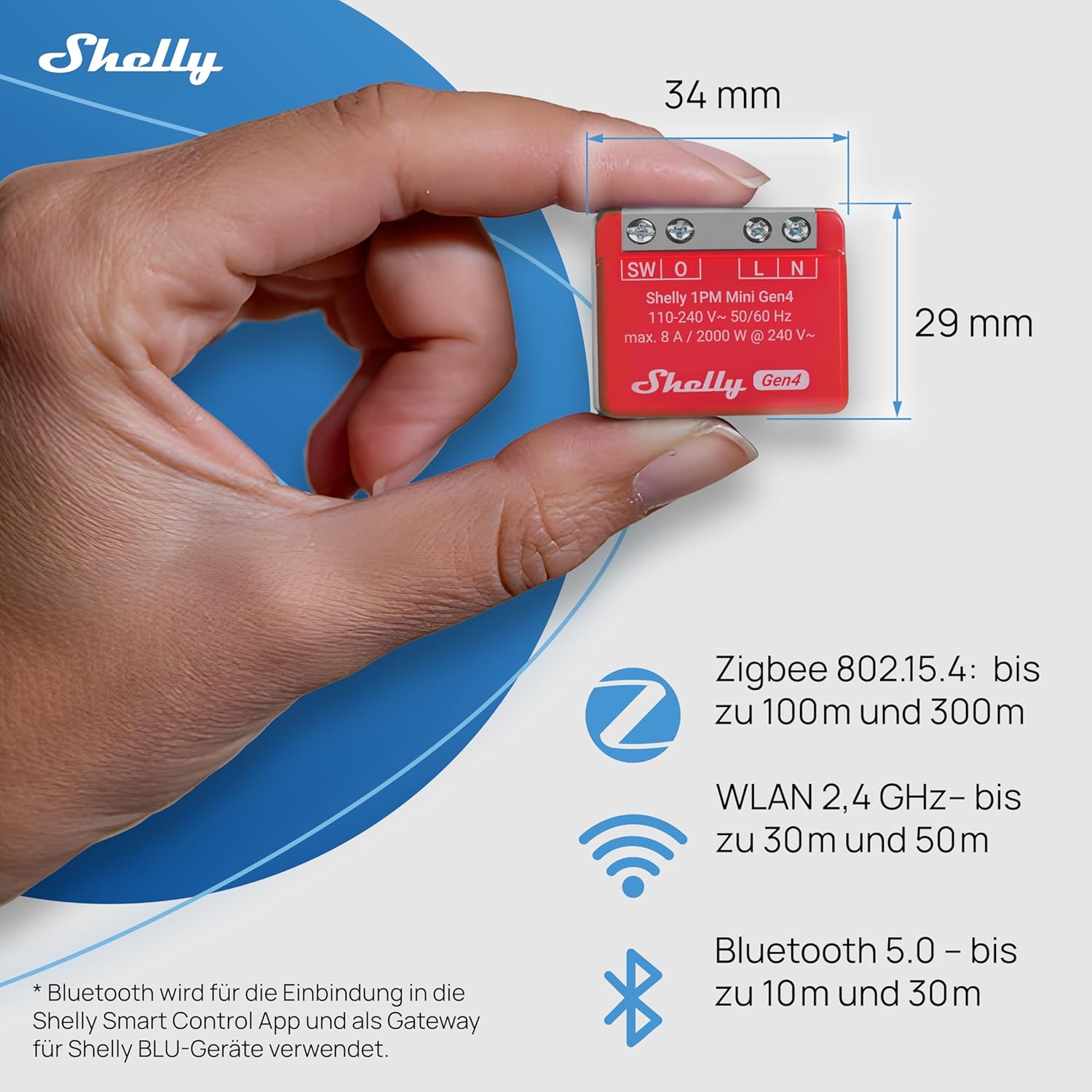

- Dimensions: 29 × 34 × 16 mm
- Supply voltage: 110–240 V AC, 50/60 Hz
- Max. switching load: 8 A / 240 V AC (2000 W)

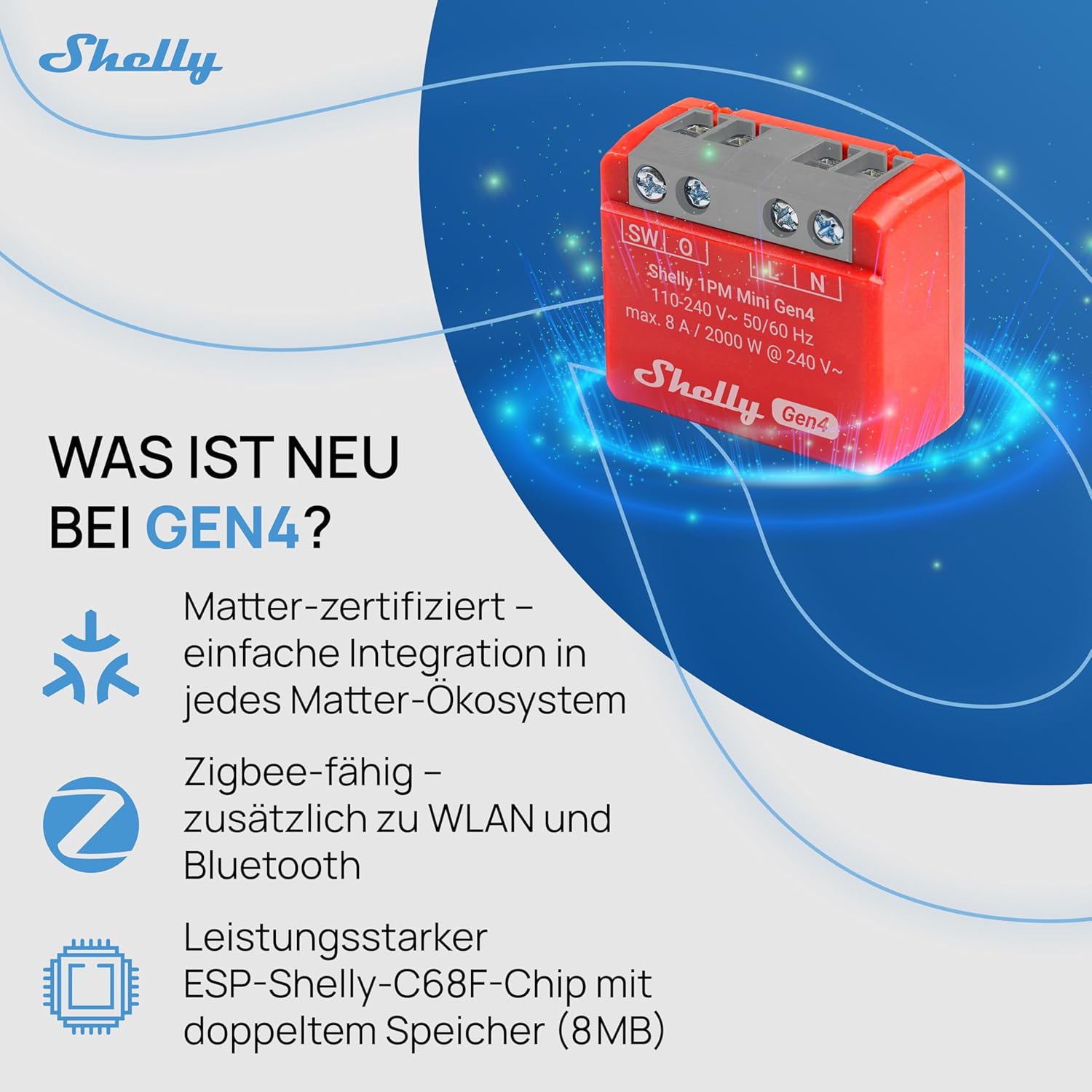

- Communication: Wi-Fi (2.4 GHz), Bluetooth 5.0, Zigbee 3.0, Matter-compatible
- Power metering: Real-time power measurement
- Protection features: Overload protection, temperature monitoring, automatic shut-off
- Connections: Screw terminals, wire cross-section 0.2–2.5 mm²
- Environment: –20 to +40 °C, 30–70% humidity (non-condensing)
- Compatibility: Shelly Cloud, MQTT, Webhooks, Home Assistant, Alexa, Google Home

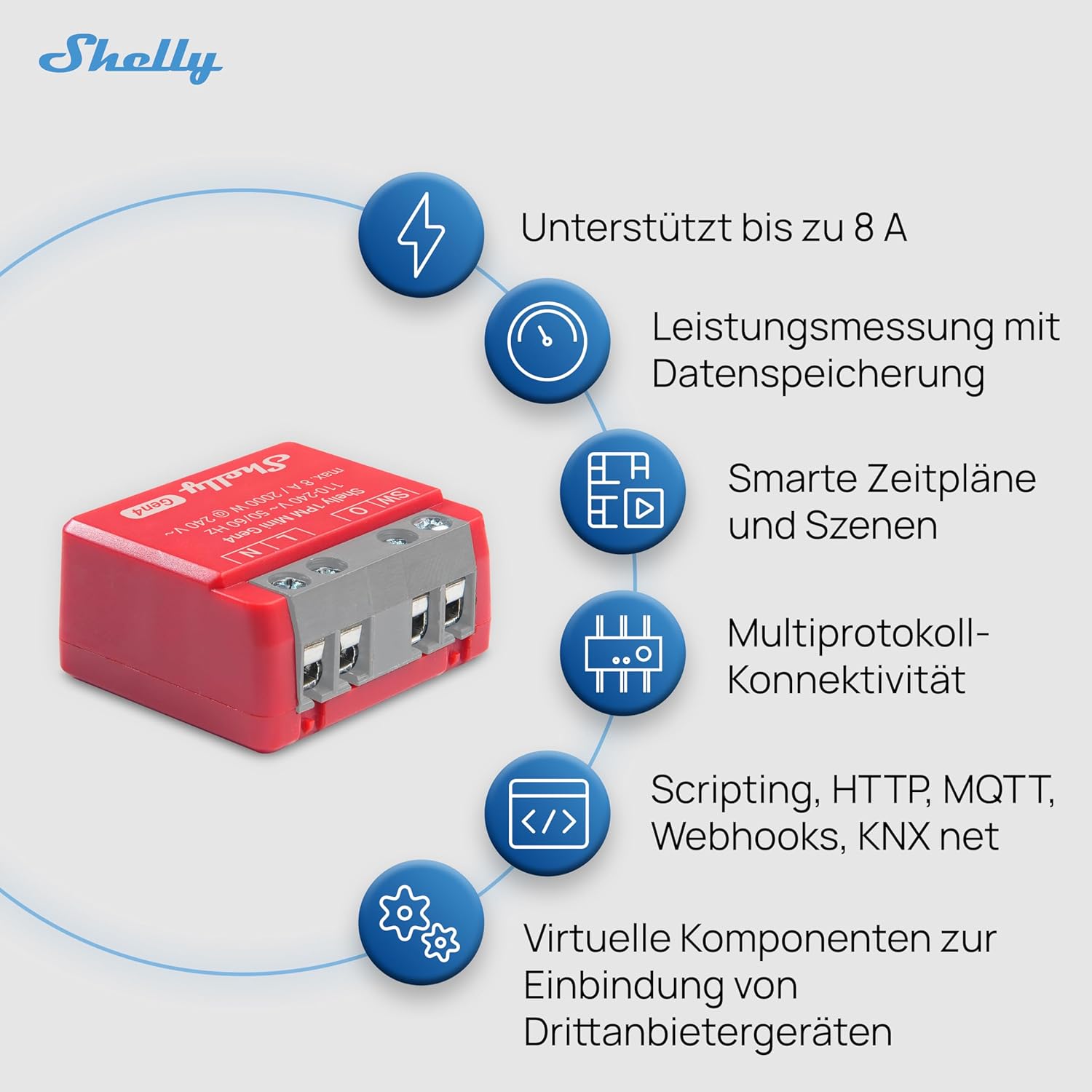

- Functions: Schedules, scenes, local scripting (mjS)

Key Features
- Compact design for tight boxes
- Measurement of current, voltage, and power
- Local operation possible without cloud requirement

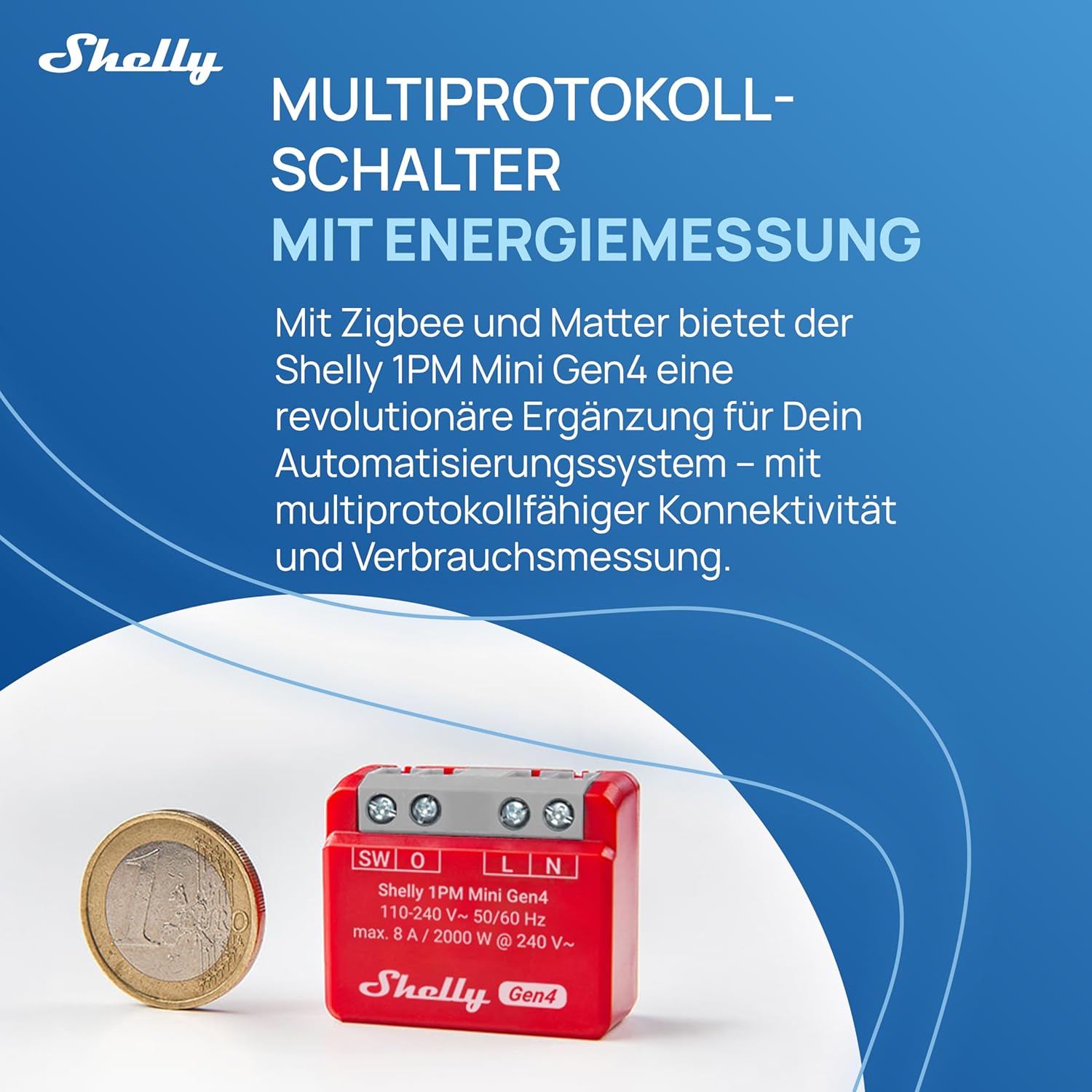

- Multi-protocol support including Matter
- Versatile automation options

Typical Applications

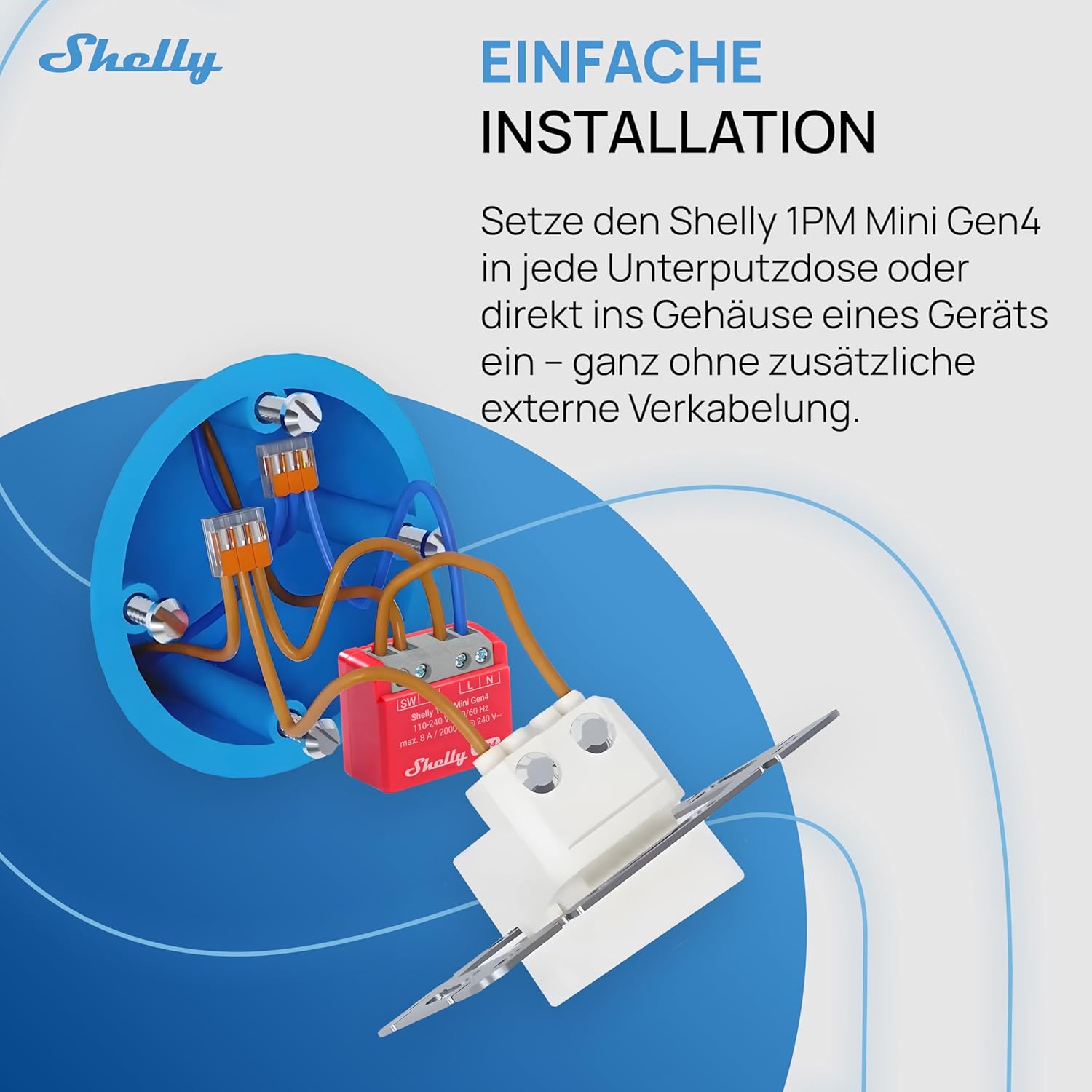

- Retrofitting behind light switches in older buildings
- Controlling household appliances, fans, or door actuators
- Energy monitoring of individual consumers
- Integration into existing smart home systems
