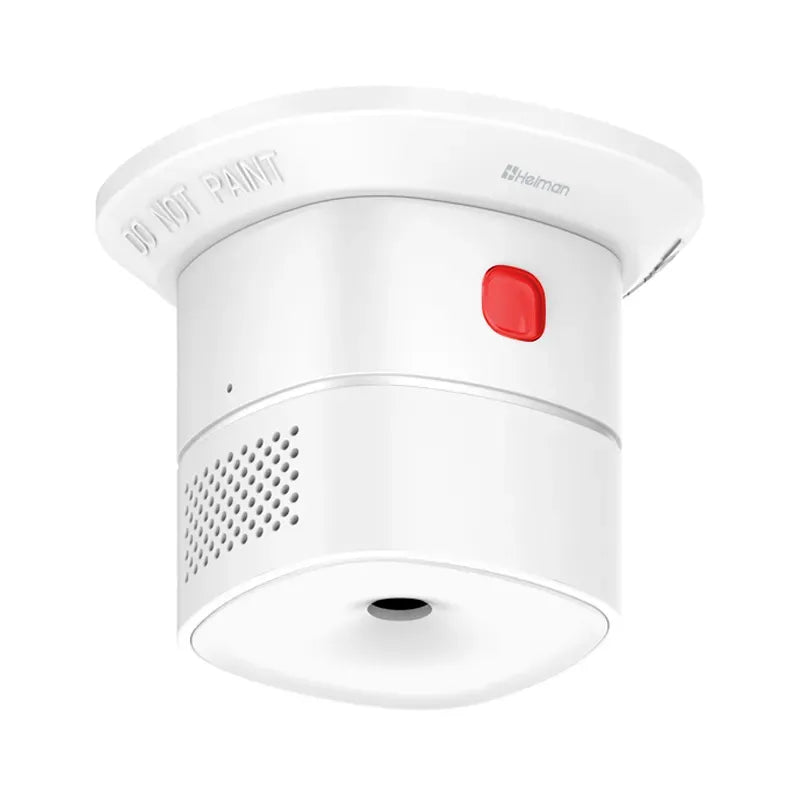

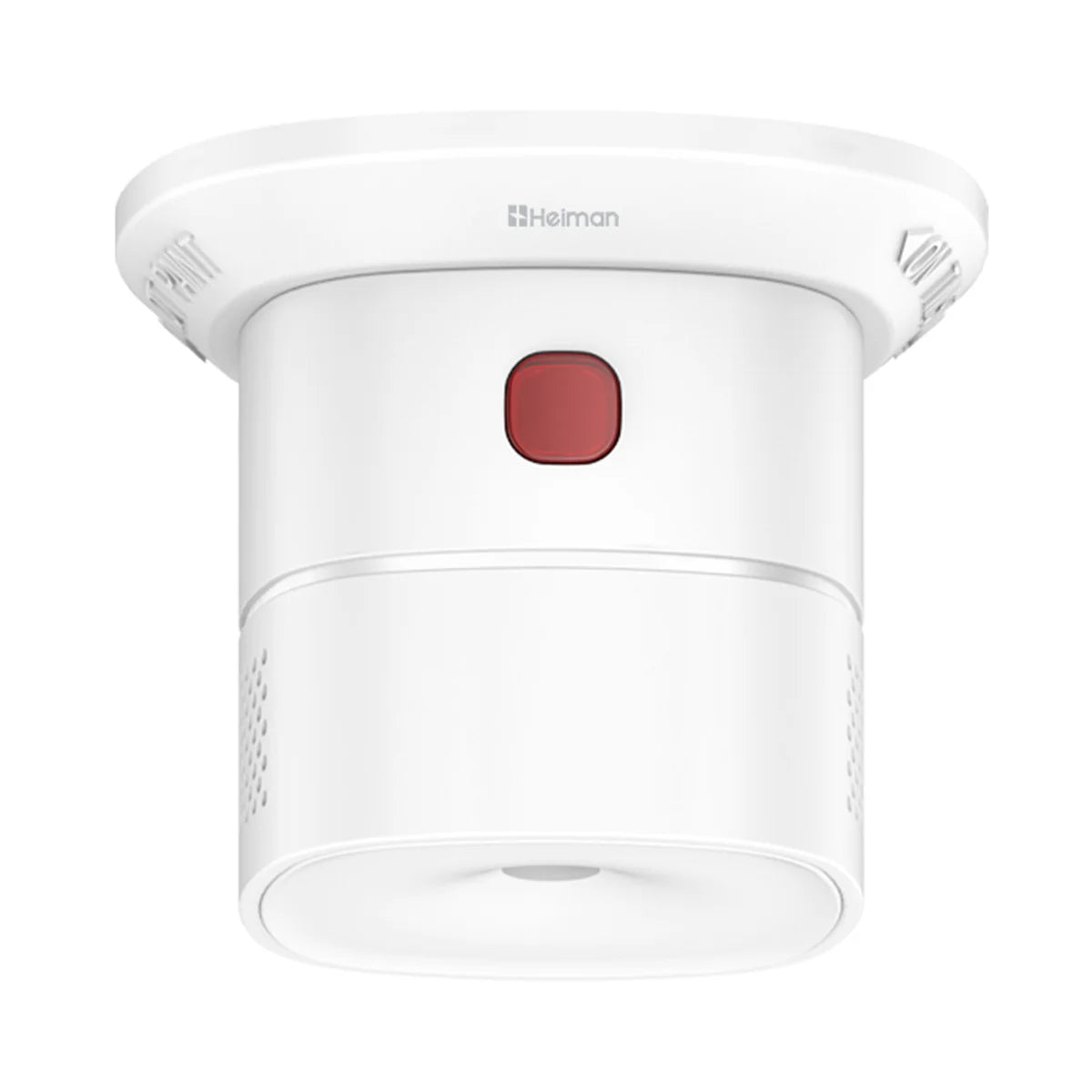

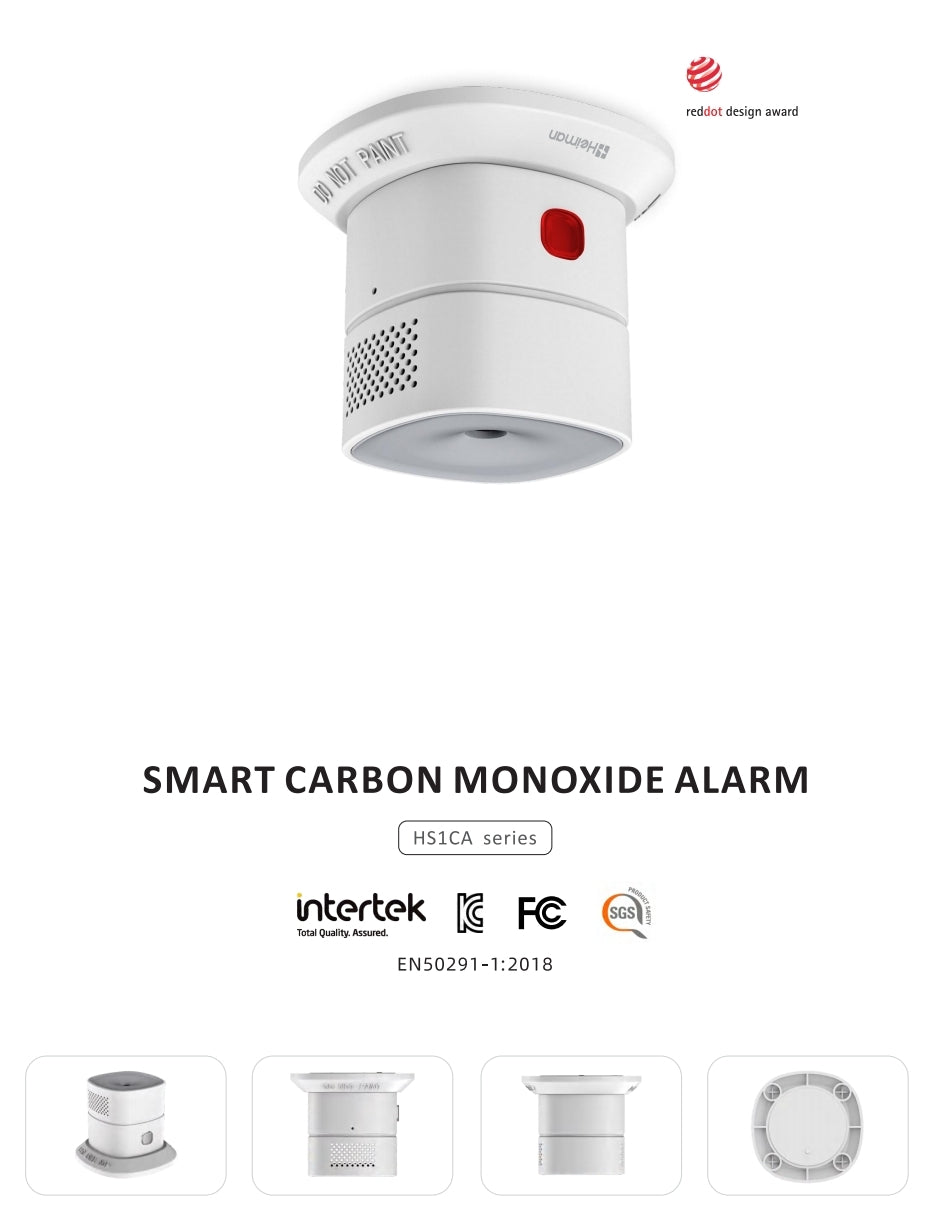

Carbon monoxide detector, CO sensor, Zigbee 3.0, HS1CA

Zigbee CO detector with battery operation

The Zigbee carbon monoxide sensor from HEIMAN ensures greater safety in your home by reliably warning you of the dangers of invisible and odorless carbon monoxide (CO). As soon as the set limits are exceeded, the sensor emits a loud alarm tone of 85 dB and also signals the alarm visually.

In addition to the acoustic and visual warning, scenes can be automatically triggered and notifications sent to your smartphone via a Zigbee 3.0 gateway. The battery-operated sensor informs you in good time about a low battery level and offers a battery life of up to 3 years.

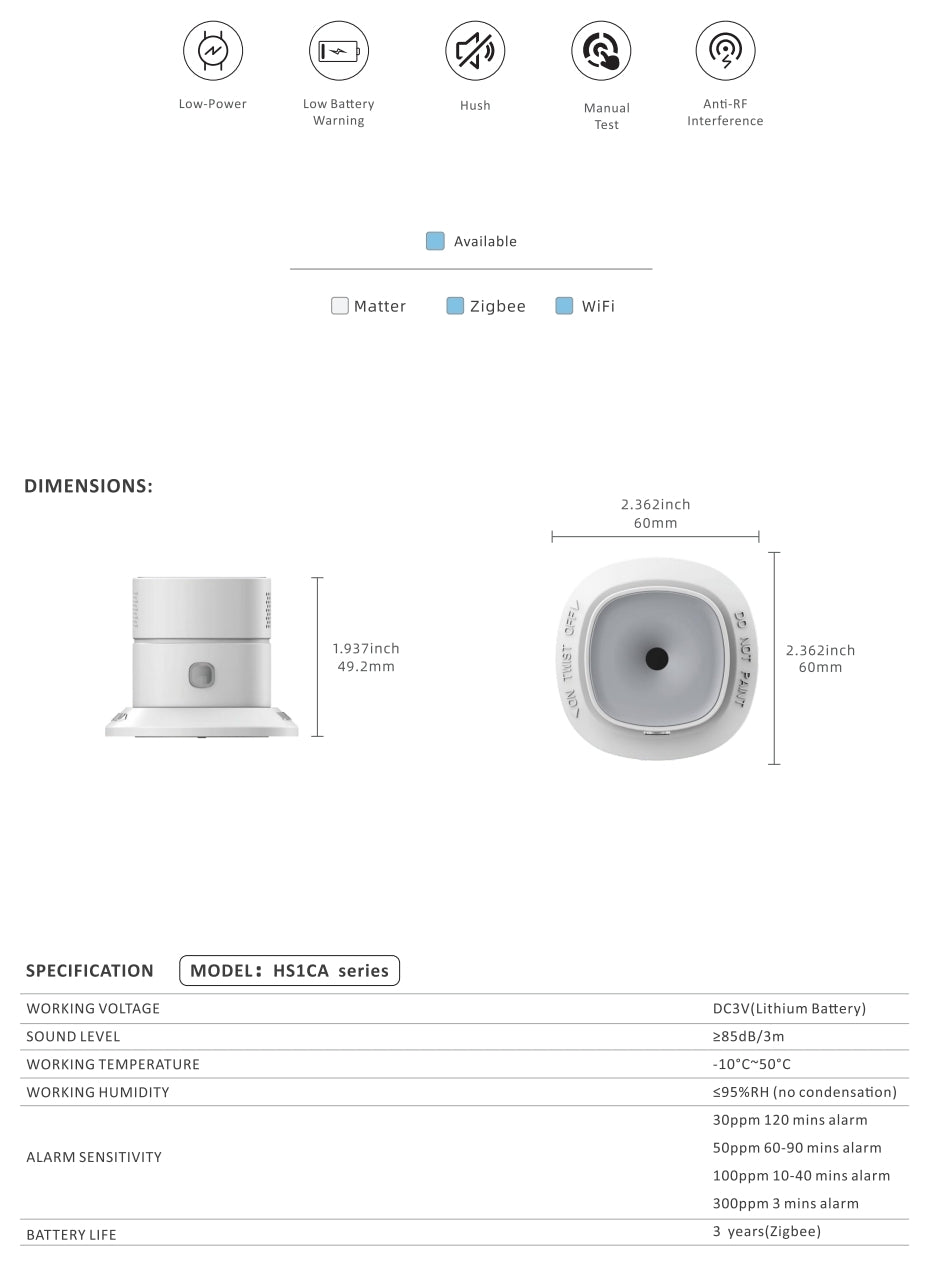

Technical data:

1. Working voltage : DC 3V (CR123A lithium battery, service life up to 3 years)
2. Power consumption :
   • Standby : ≤20 µA
   • Alarm : ≤150 mA
3. Alarm :
   • Volume: ≥85 dB at 3 m distance
   • Sensitivity:
     • 30 ppm: Alarm in 120 minutes
     • 50 ppm: Alarm in 60–90 minutes
     • 100 ppm: Alarm in 10–40 minutes
     • 300 ppm: Alarm in 3 minutes
4. Network : Zigbee ad hoc network
5. Radio range : ≤50 m (without obstacles)
6. Immunity : Against RF interference from 80 MHz to 1 GHz, up to 10 V/m
7. Work environment :
   • Temperature: -10°C to +50°C
   • Humidity: Maximum 95%
8. Dimensions : 60 × 60 × 49.2 mm

Special features:

• Standard Zigbee HA3.0 : Excellent compatibility with smart home systems.
• High-precision sensor : Japanese electrochemical sensor for precise measurements.
• Low power warning : Signals in time when the battery is low.
• Easy maintenance : battery can be easily removed and replaced.
• Tool-free installation : Ready for use straight away thanks to self-adhesive mounting.
• Modern design : Compact, stylish design with patented optics.

This Zigbee CO detector combines security, convenience and modern design – essential for every home.
