Gravity: SFA40 Formaldehyde (HCHO) Sensor
Gravity: SFA40 Formaldehyde (HCHO) Sensor
auf Lager: 94
Couldn't load pickup availability
Works with:

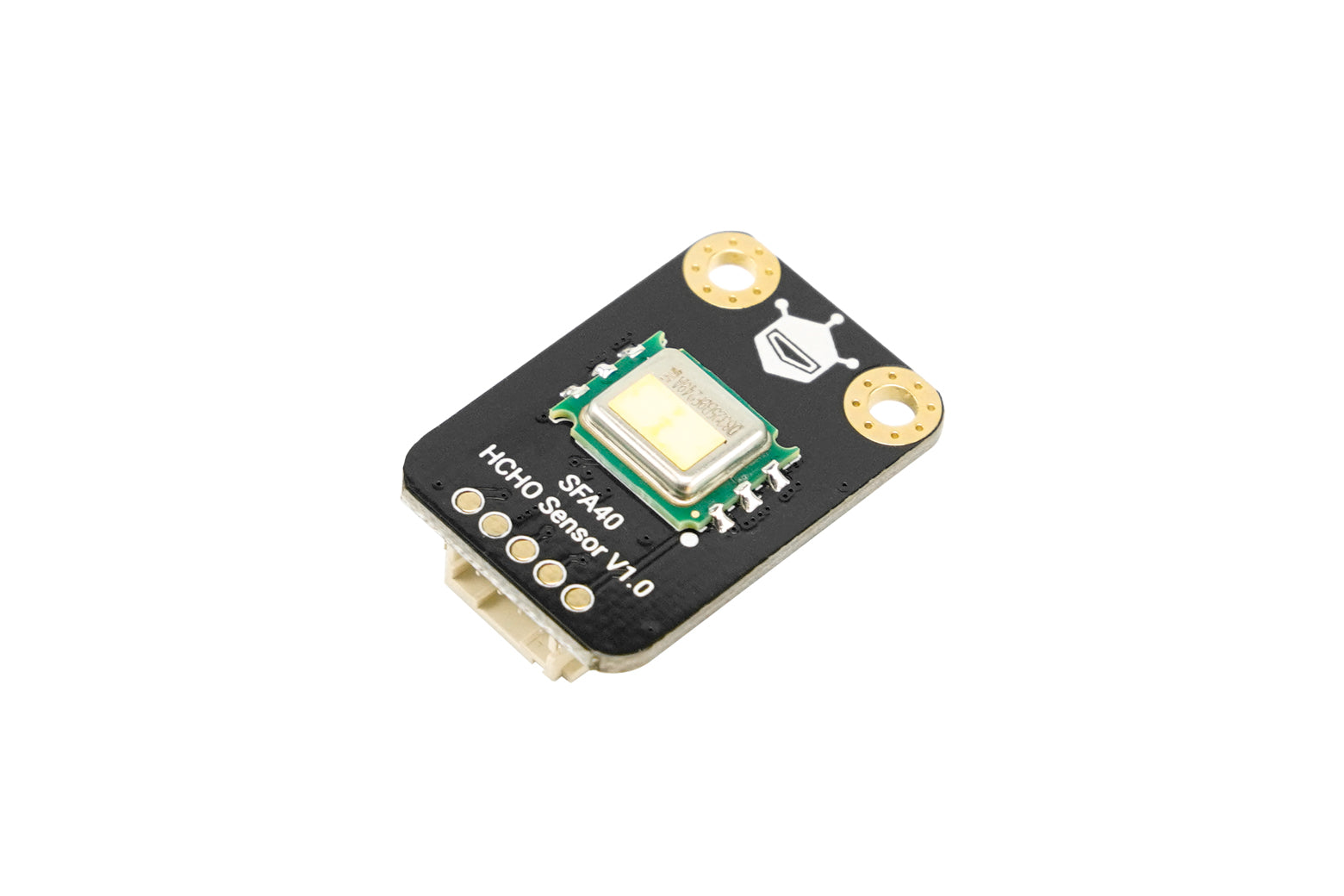

The Gravity SFA40 is a high-precision formaldehyde sensor for HCHO concentrations of 0–1000 ppb with a typical accuracy of ±20 ppb or ±20% m.v. in the 0–200 ppb range. It is the successor to the SFA30 and is fully compatible with Project Aura—both electrically and mechanically for installation in the 3D-printed enclosure used there. You can find details on Project Aura and the 3D enclosure at Project Aura – Make the Invisible Visible .
The module is based on the Sensirion SFA40 and uses an electrochemical measurement principle with very low cross-sensitivity to ethanol (< 0.3%), which significantly reduces false alarms caused by typical household odors. An integrated SHT4x sensor provides automatic temperature and humidity compensation, with output via an easy-to-use Gravity I2C interface.
Technical Data
| Manufacturer | DFRobot |
|---|---|
| Product Name | Gravity: SFA40 Formaldehyde (HCHO) Sensor |
| SKU | SEN0661 |
| Measurement Principle | Electrochemical formaldehyde sensor (Sensirion SFA40) |
| Measurement Range | 0–1000 ppb HCHO |
| Typical Accuracy | ±20 ppb or ±20% m.v. (0–200 ppb) |
| Detection Limit | 20 ppb |
| Cross-sensitivity to Ethanol | < 0.3% |
| Environmental Compensation | Integrated SHT4x for temperature and humidity correction |
| Interface | Gravity I2C |
| Supply Voltage | 3.3–5 V |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 10–90% RH |
| Current Consumption | 80 µA (average at 2 Hz), 2 mA (peak) |

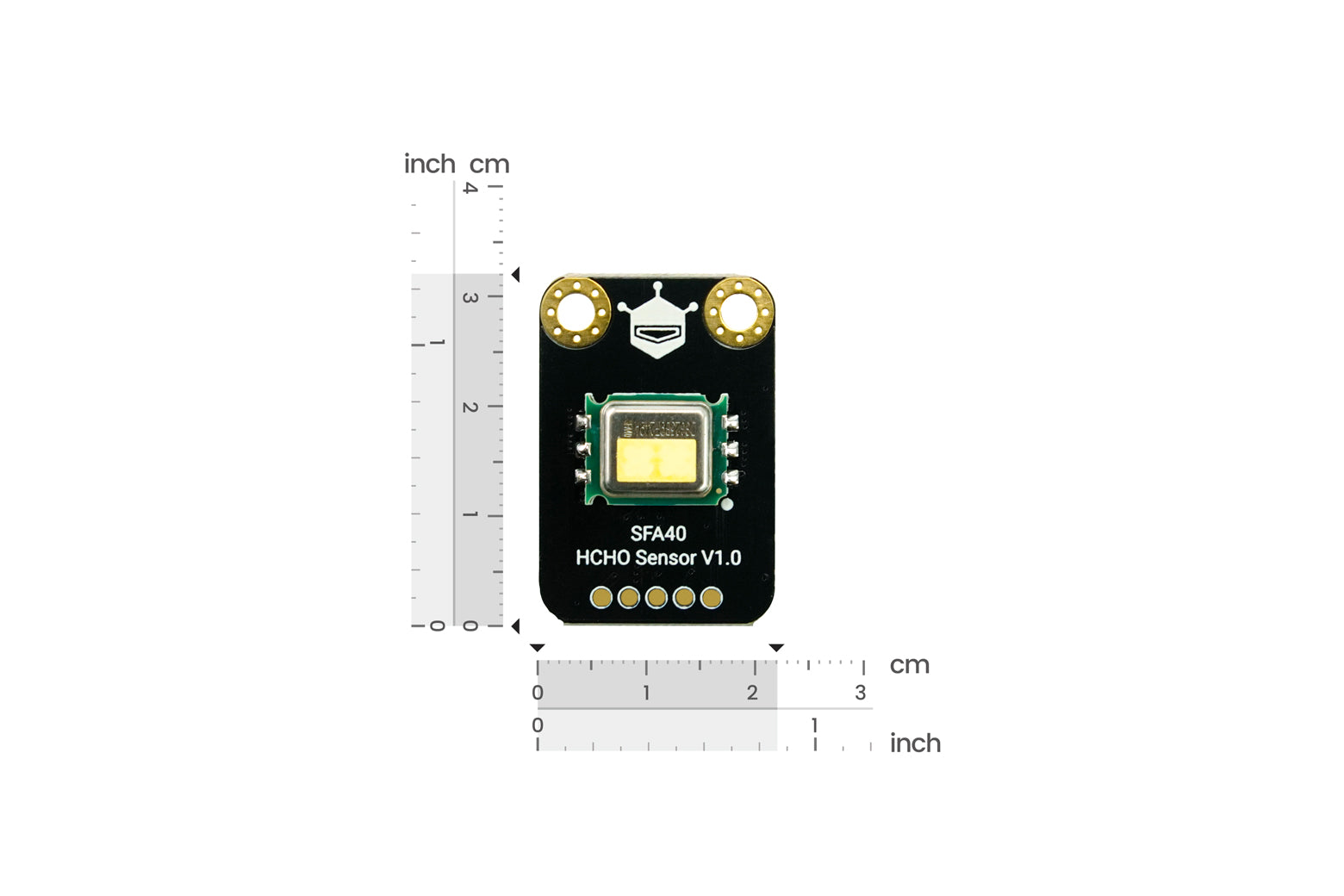

| Dimensions | 32 × 22 mm |

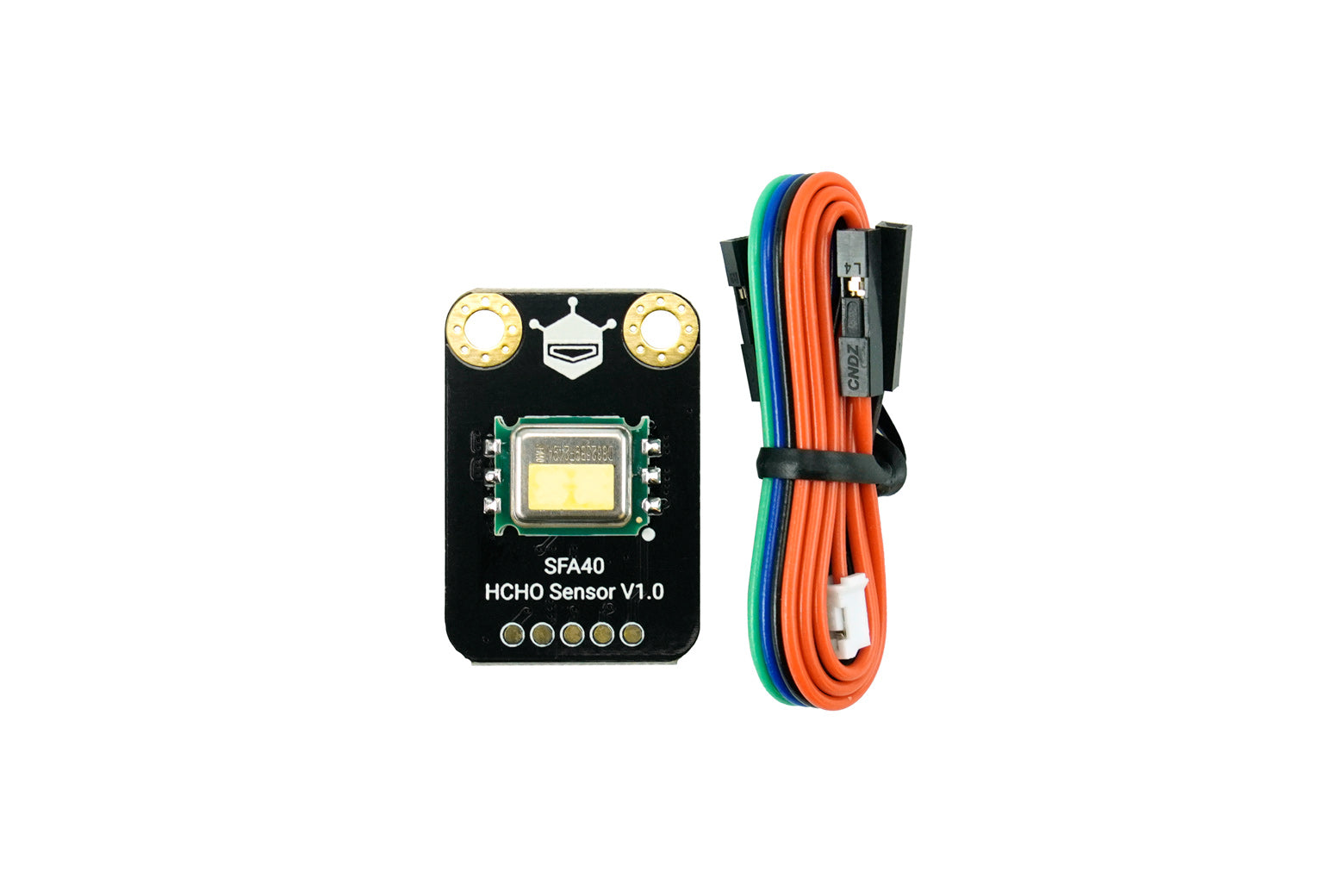

| Scope of Delivery | Gravity SFA40 HCHO Sensor, Gravity 4-pin sensor cable |
