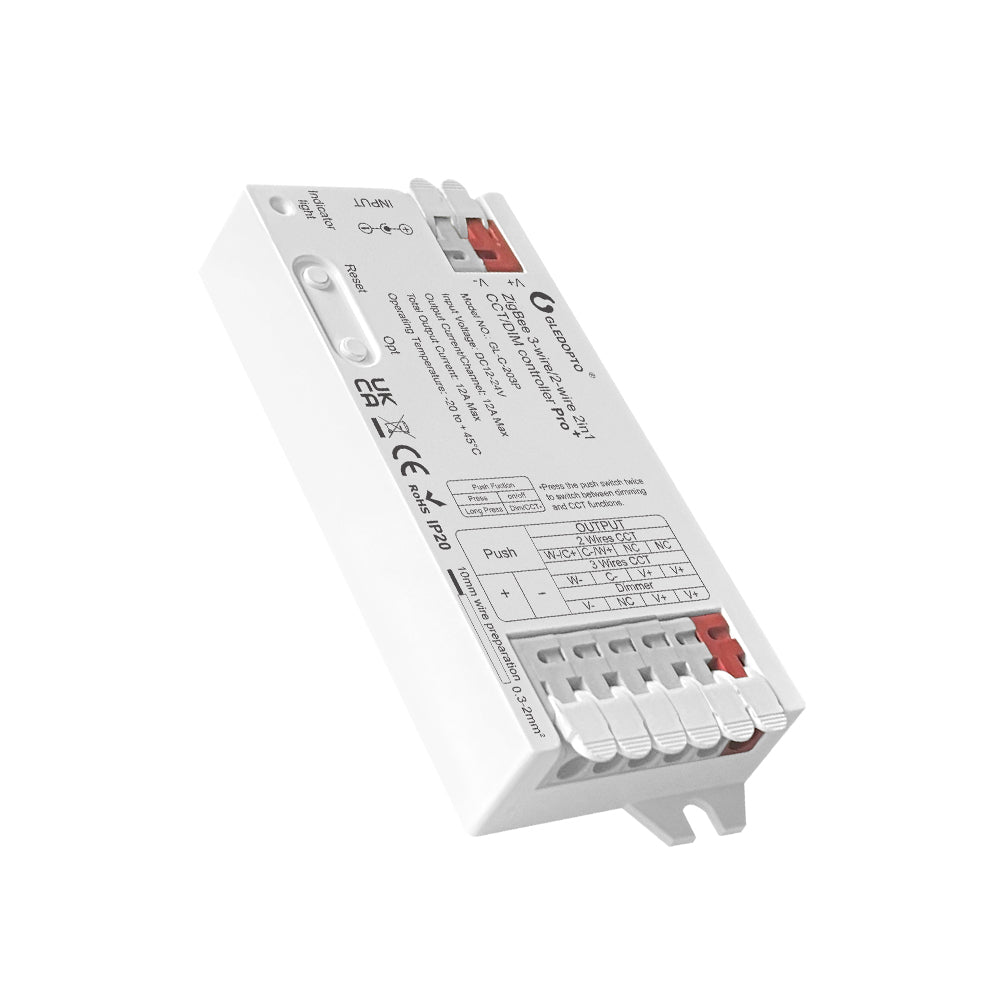

GLEDOPTO GL-C-203P Zigbee Pro+ 2-in-1 CCT/DIM LED Controller

The GLEDOPTO GL-C-203P is a compact Zigbee controller for single-color DIM and CCT LED strips. The operating mode is selected directly on the device. Additionally, it supports 2.4 GHz RF remote controls and is suitable for smart home installations with a compatible Zigbee gateway.

Highlights
• 2-in-1: DIM (single-color) or CCT (dual white)
• Zigbee plus 2.4 GHz RF
• Quick, tool-free connection terminals
• Up to 12 A total current
• Slim housing made of flame-retardant PC

Technical Data
• Model: GL-C-203P
• Input: DC 12–24 V
• Output: 12 A total, max. 12 A per channel
• Protection rating: IP20
• Dimensions: 108 × 45 × 18 mm
• Weight: approx. 60 g
• Color: White

Included in Delivery
• 1 × GLEDOPTO GL-C-203P LED Controller
• User manual

Note: Power supply unit, LED strips, Zigbee gateway, and remote control are not included.
