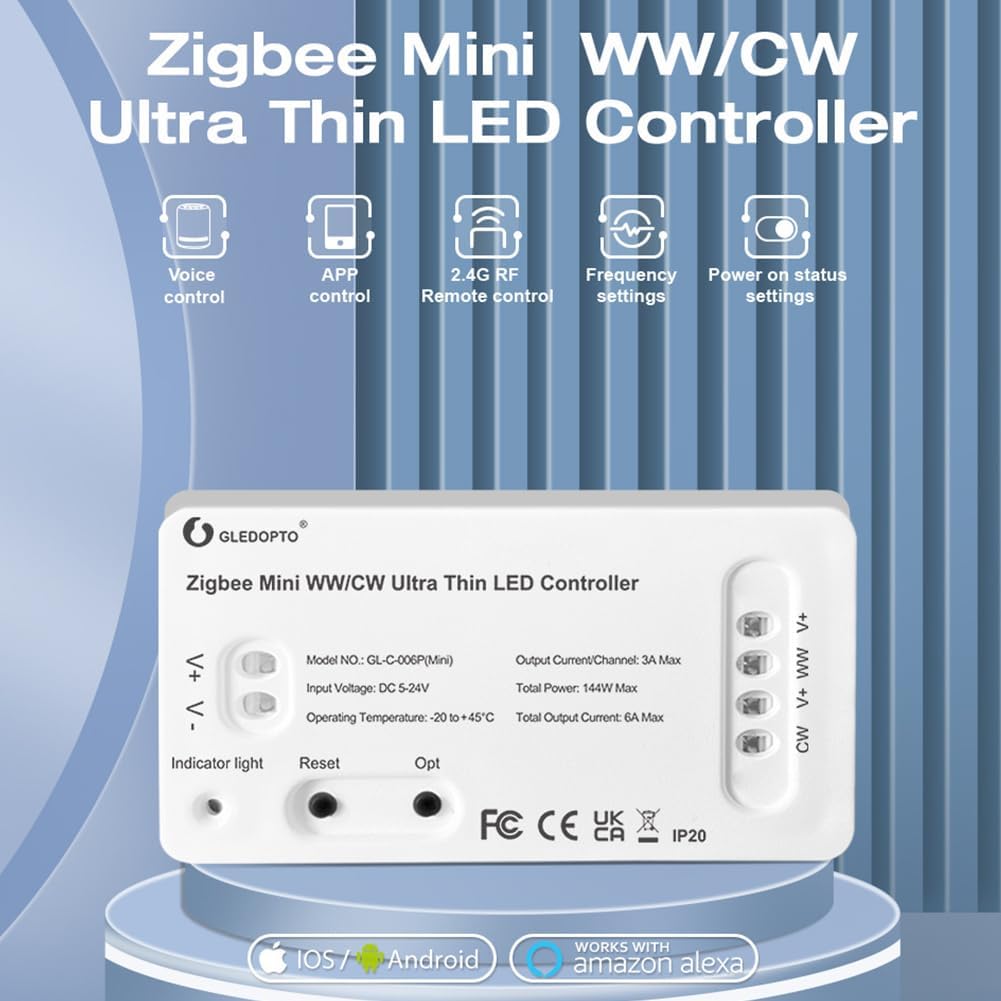

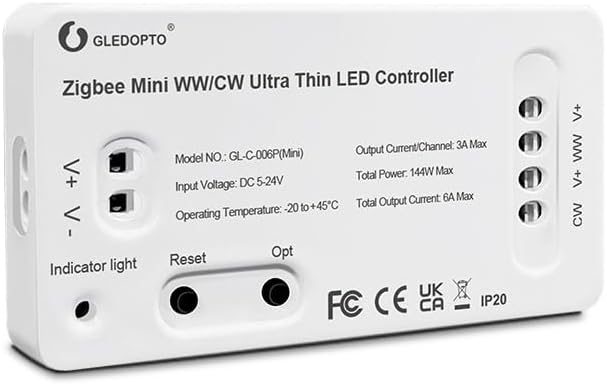

GLEDOPTO GL-C-006P (Mini) Zigbee Pro WW/CW LED Controller

The GLEDOPTO GL-C-006P (Mini) is an ultra-thin Zigbee Pro LED controller for dual-white/CCT LED strips. At only 70 × 36 × 10 mm, it is particularly suitable for installations with limited space. Color temperature and brightness can be adjusted steplessly.

The controller operates on DC 5–24 V and provides a maximum of 3 A per channel or 6 A total current. At 24 V, a total power of up to 144 W is possible.

Main Features

• Design: Mini / Ultra Thin
• Control Protocol: Zigbee 3.0 Pro + 2.4 GHz RF
• LED Type: WW/CW (CCT, Dual White)
• Color Temperature: 2700–7000 K adjustable
• Brightness: 0–100 % dimmable
• Input Voltage: DC 5–24 V
• Output Current: max. 3 A per channel, max. 6 A total
• Output Power: max. 144 W at 24 V
• Protection Rating: IP20
• Operating Temperature: −20 °C to +45 °C
• Dimensions: 70 × 36 × 10 mm

Compatibility

Compatible with common Zigbee gateways and systems, including Philips Hue, IKEA Tradfri, Amazon Echo Plus, Home Assistant, Zigbee2MQTT, and ZHA. Additionally, the controller can be operated with the GLEDOPTO 6-zone RF remote control GL-RC-006Z.

Manufacturer: GLEDOPTO Co., Ltd. | Model: GL-C-006P (Mini) | Warranty: 2 years
