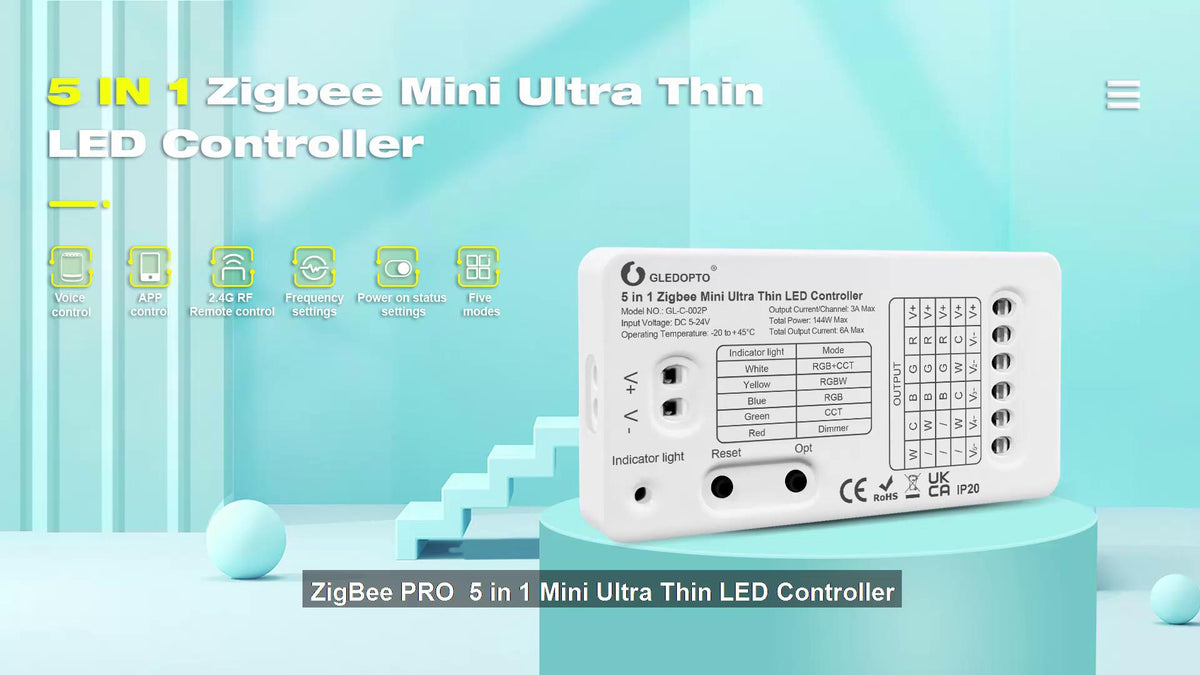

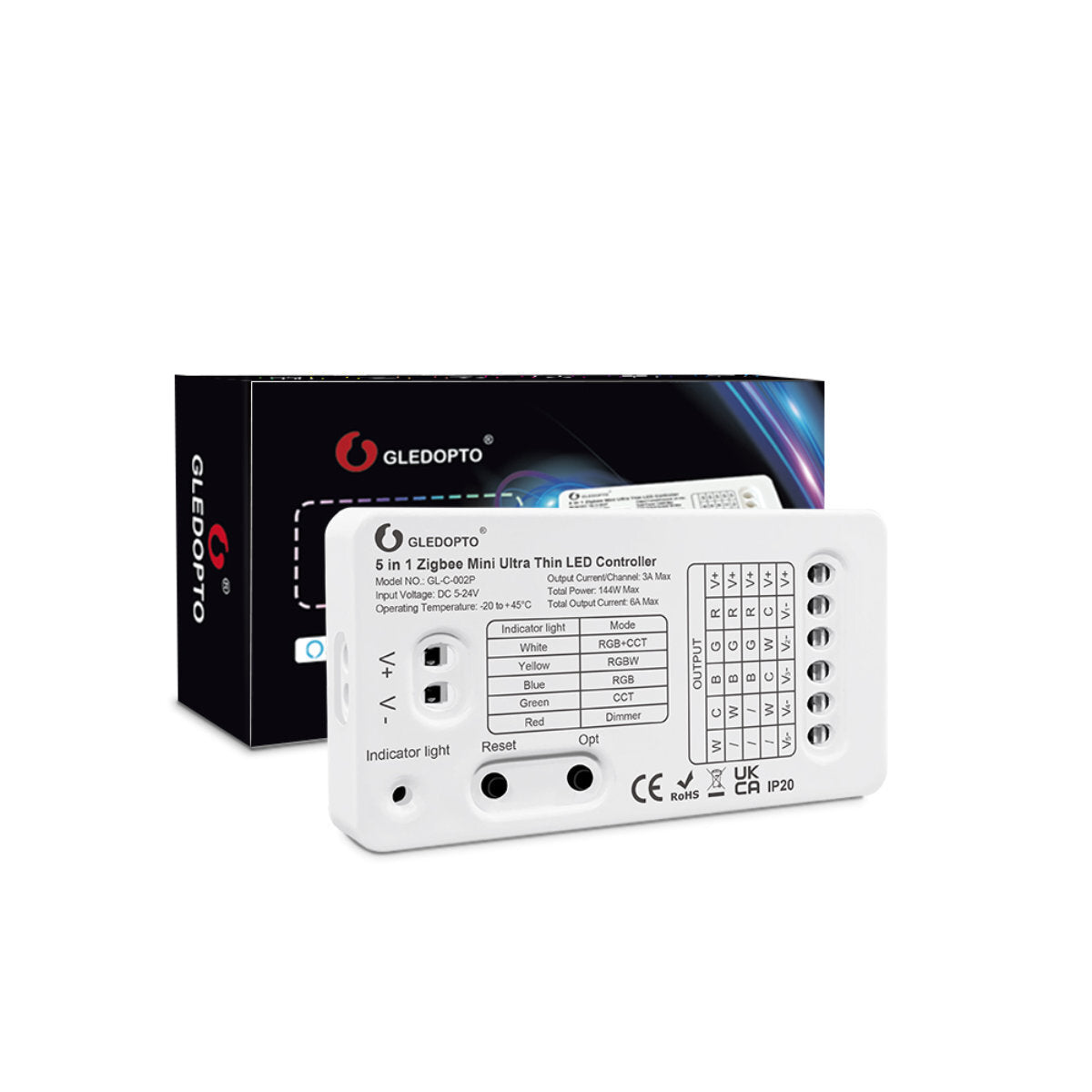

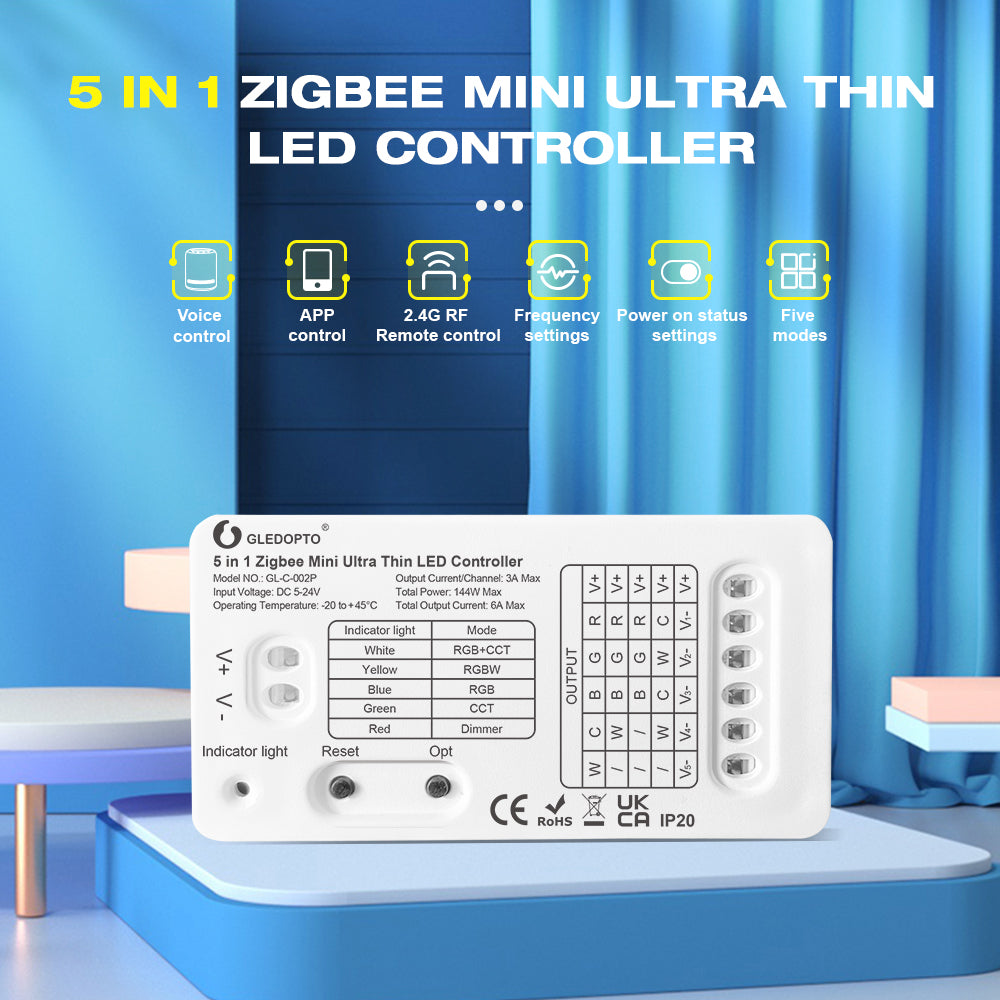

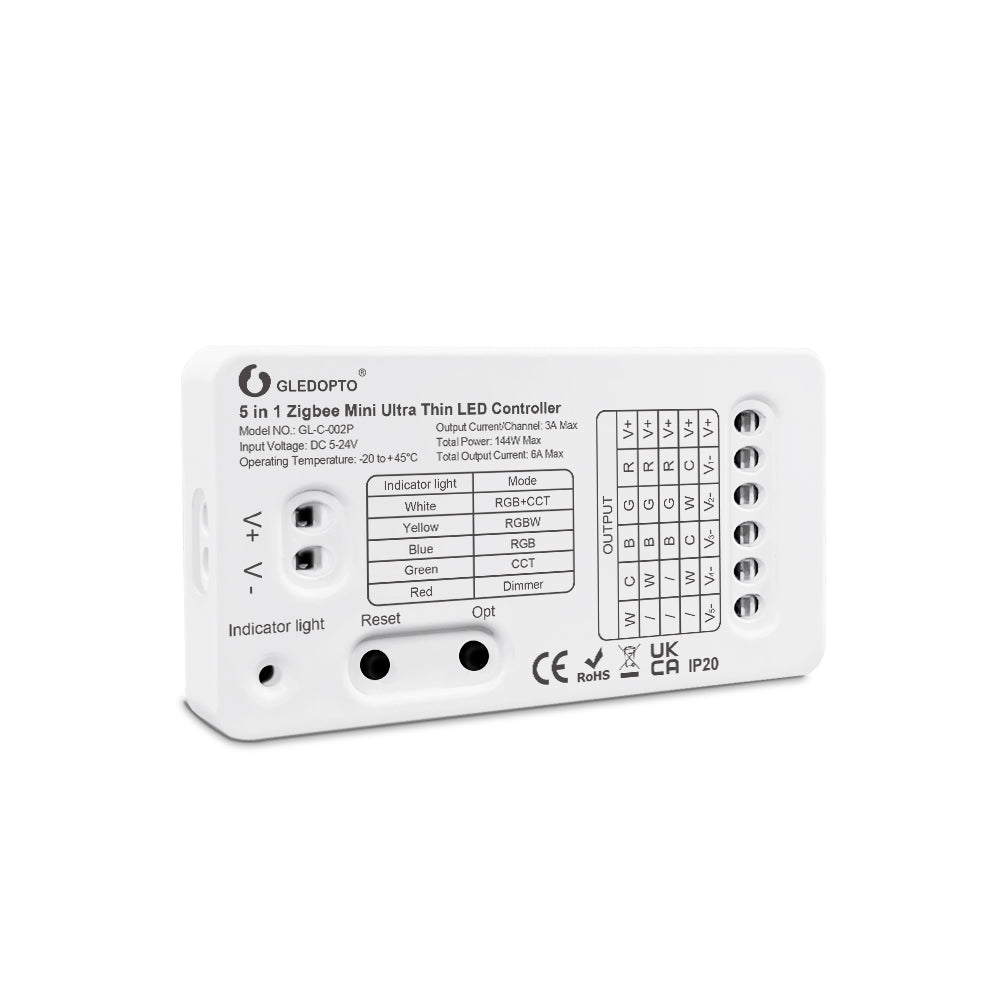

GLEDOPTO GL-C-002P ZigBee Pro Ultra Thin Mini 5-IN-1 LED Controller

The GLEDOPTO GL-C-002P is an extremely compact ZigBee 3.0 Pro LED controller featuring an ultra-slim design. It controls RGB+CCT, RGBW, RGB, CCT, and dimmer LED strips – all in one device. Thanks to its small size, it is ideal for space-saving installation in lamps, furniture, or suspended ceilings.

Compatible with all common ZigBee 3.0 gateways such as Philips Hue, Amazon Echo Plus, SmartThings, Homey, Home Assistant, and Tuya. Additionally, it supports the MiBoxer 2.4 GHz RF remote control.

Key Features

• Control protocol: ZigBee 3.0 + 2.4 GHz RF
• Input voltage: DC 5–24 V
• 5 operating modes: RGBCCT, RGBW, RGB, CCT, Dimmer
• Output current per channel: max. 3 A (6A variant: max. 6 A/channel)
• Total output current: max. 6 A
• Maximum output power: 144 W
• Protection class: IP20 (for indoor applications)
• Design: Common Anode, Constant Voltage
• Operating temperature: –20 °C to +45 °C
• Dimensions: 70 × 36 × 10 mm (Ultra Slim)

Compatible Smart Home Systems

Philips Hue · Amazon Alexa · Google Home · Home Assistant · SmartThings · Tuya · Homey · Zigbee2MQTT · ZHA

Typical Applications

• LED strips in furniture and shelves
• Indirect lighting in tight installation spaces
• Smart living room lighting
• DIY smart home projects

Manufacturer: GLEDOPTO Co., Ltd. | Model: GL-C-002P | Warranty: 2 years
